Unloading of Steam Drum with
Proper Lifting Arrangement &
Wooden Packing
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgiUMZ71Jzm32DD2lP1NKaRPYSJc1ua9zz8WUtSl7KjC-20sGrajfsmofkDv6L68ifZNVCe4-olMr1o2GSXx1wV_GbZawZaeA28sHTQwdc66SlhlFB3d-yhjjZvzfNWOkH_HQiZ5ysGmJ0/s320/DSC08924.JPG)

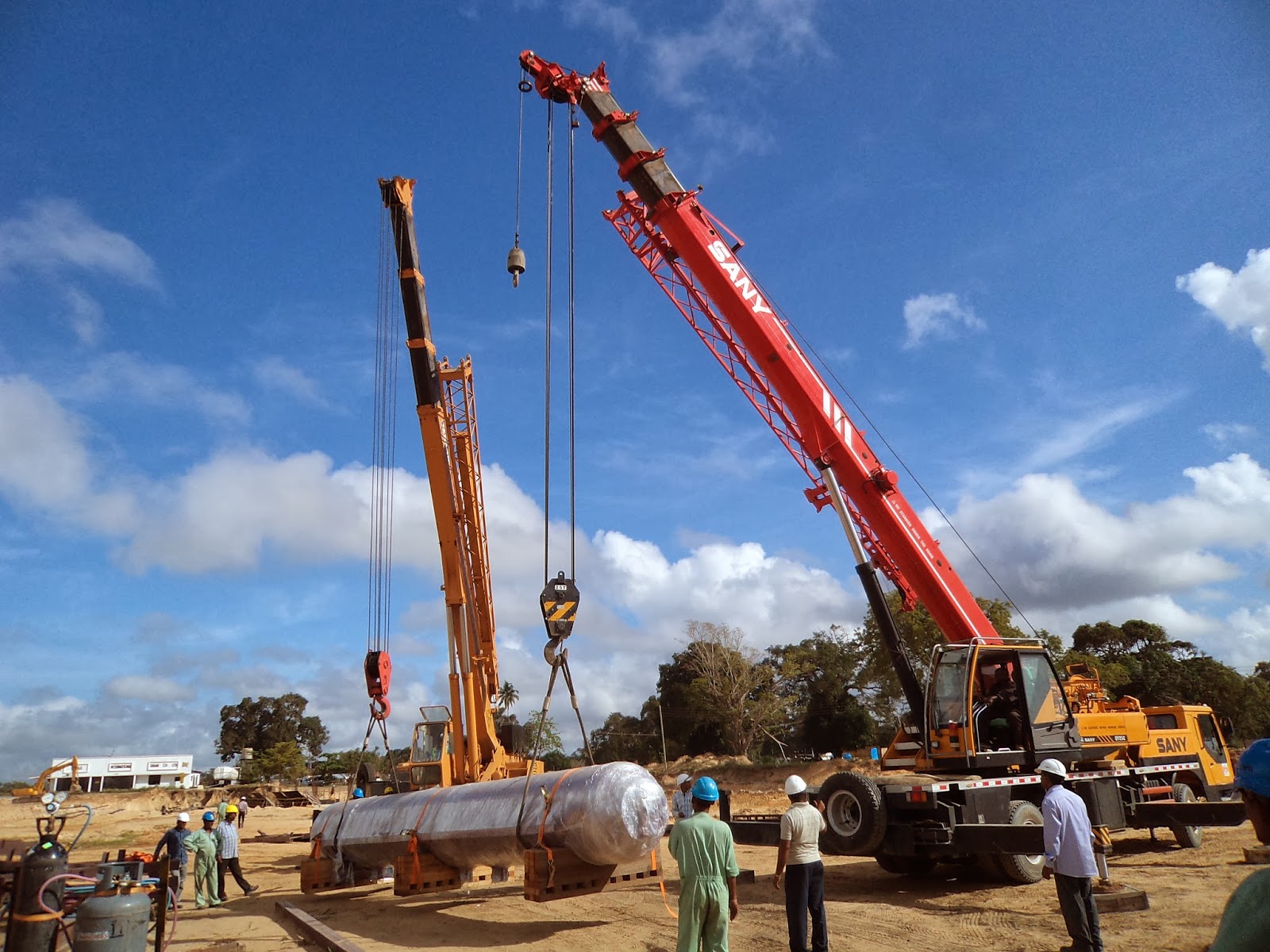

Crane Positioning & Proper Boom Angle during unloading
Boom Angle 65 degree to 85 degree
With Proper Supervision.
Safety Arrangements & Proper Barrigation
Total Lead time for Every 1 meter Erection Progress of 3 mins
Total No of turns of Lacing Required
Total Weight of Equipment
---------------------------
Lifting Capacity of Wire Rope
Pulley Capacity Required = Total Weight of Equipment
Angle of Inclination not more than -7 degree

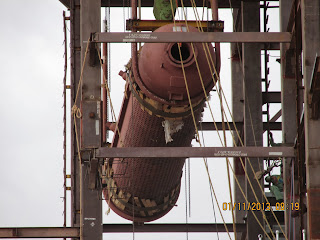

Positioning of Steam Drum to required Elevation
Fixing & Locking of Steam Drum with U- Bolt
after reaching to required Position.

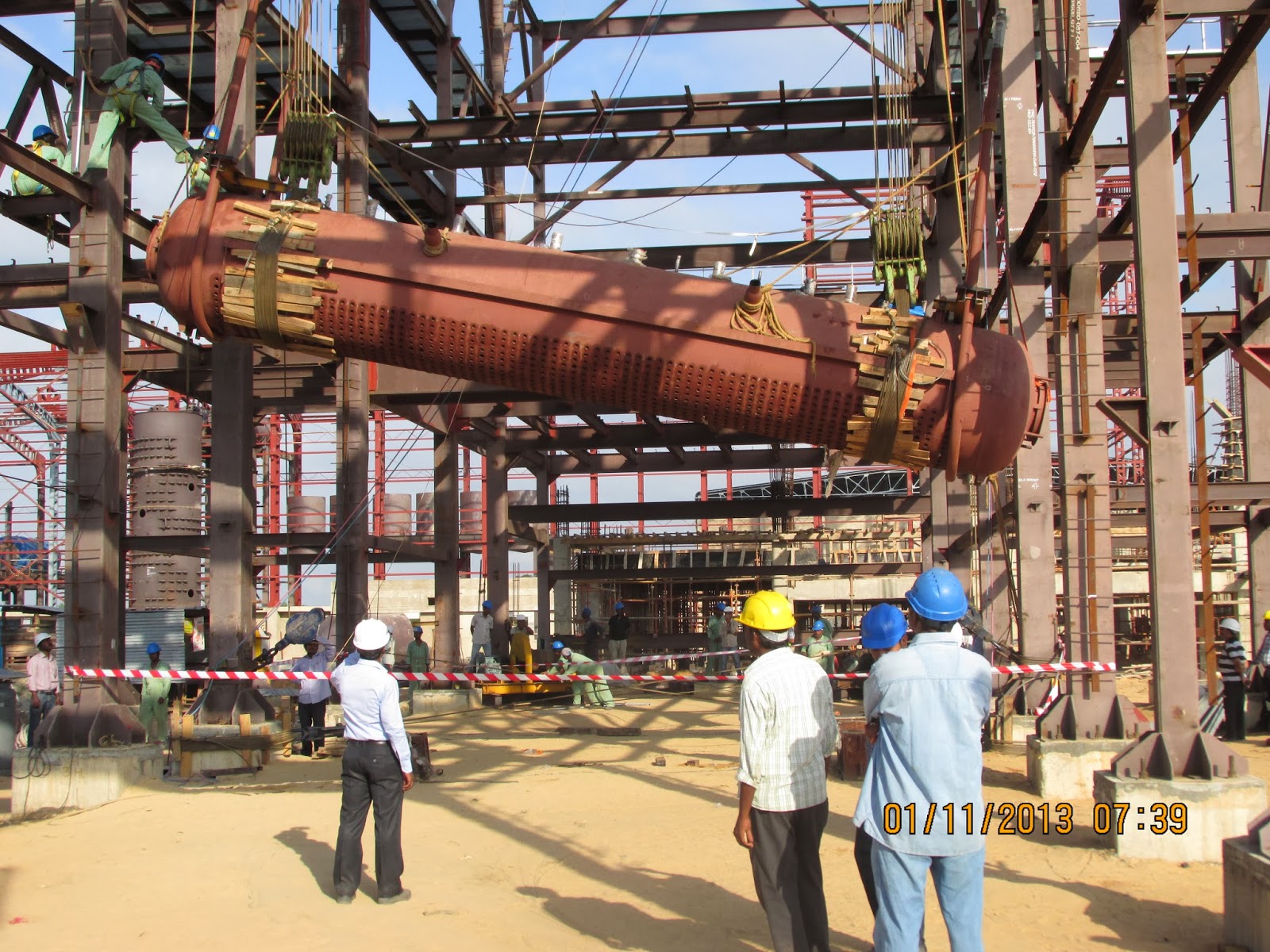

Plant View from
LHS after Erection of Steam Drum
Proper Lifting Arrangement &
Wooden Packing
Crane Positioning & Proper Boom Angle during unloading
Boom Angle 65 degree to 85 degree
With Proper Supervision.
Safety Arrangements & Proper Barrigation
Total Lead time for Every 1 meter Erection Progress of 3 mins
Total No of turns of Lacing Required
Total Weight of Equipment
---------------------------
Lifting Capacity of Wire Rope
Pulley Capacity Required = Total Weight of Equipment
Angle of Inclination not more than -7 degree
Positioning of Steam Drum to required Elevation
Fixing & Locking of Steam Drum with U- Bolt
after reaching to required Position.
Plant View from
LHS after Erection of Steam Drum
